Dip and Chin up Assist
SILVER, BLACK, RED, WHITE, YELLOW, OR BLUE METAL CALL FOR MORE DETAILS ON IMPORT 423-650-8357

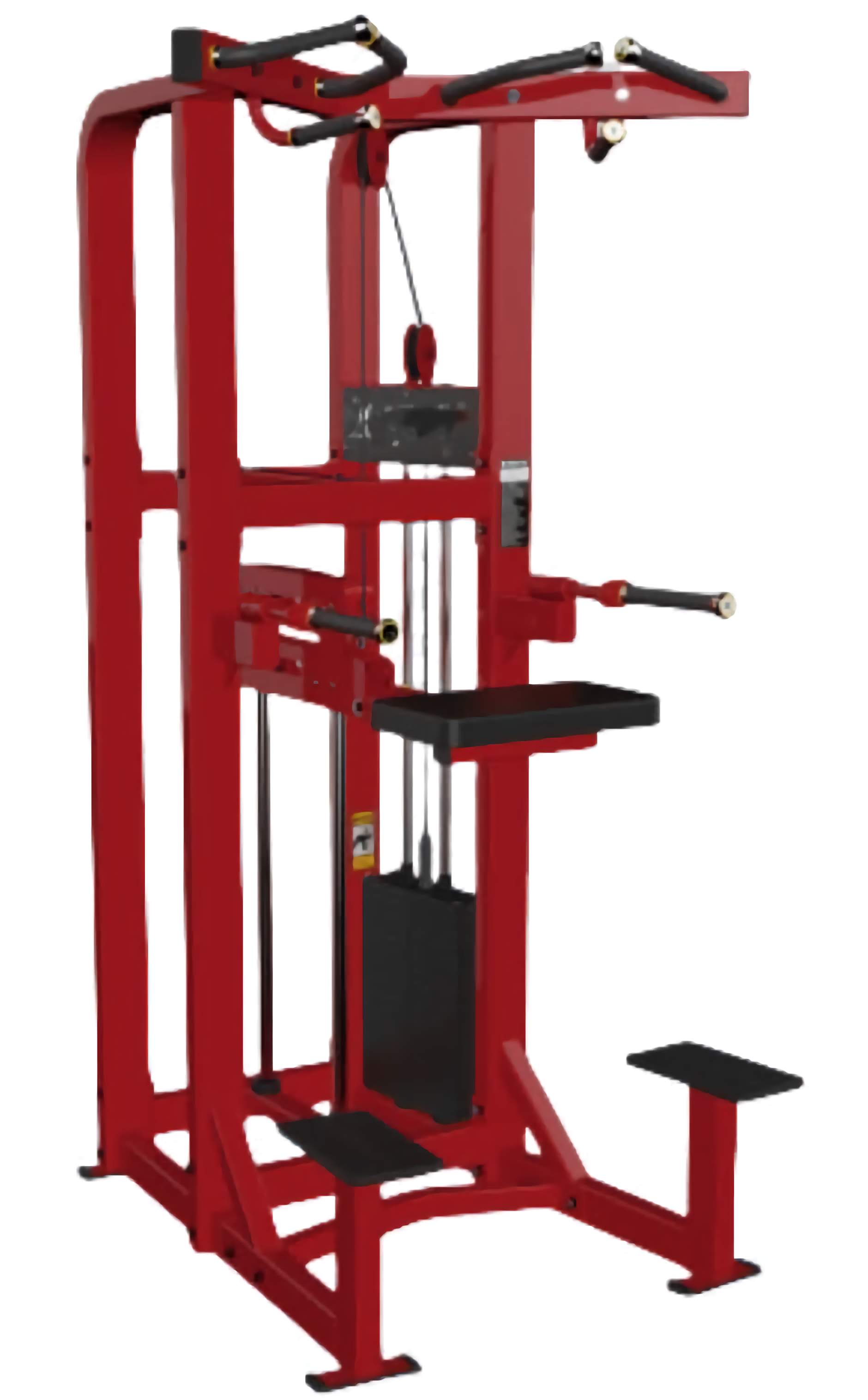

Heavy Duty Commercial Dip and Chin up Assist Workout Machine
1. The main frame adopts 50*80MM rectangular tube, the gantry adopts 50*100MM rectangular tube, Q195 steel pipe with thickness of 2.5MM, pipe height of 2135MM, guide rod diameter of 20, length of 1520MM, and flat steel counterweight plate with weight of 90KG
2. Surface treatment: electrostatic spraying, fitness equipment special powder, firmly combined with the base material, strong corrosion resistance. The product design absorbs advanced design concepts at home and abroad, and the movement trajectory is more in line with the principle of human kinesiology 4. The sponge for seat cushion and back cushion is made of high-density recycled sponge with a thickness of 30MM and a density of 170KG/m³. The plate is made of high density plate with thickness of 18MM and density of 650KG/m³. Plus high quality pvc leather processing, cushion adjustment is convenient and fast, high safety
5. The steel wire rope adopts 7 "" x19" "high-strength steel wire rope for aviation, with a diameter of 5.6MM, outsourced PVC material, and has passed 100,000 tensile tests
6. Rotating fulcrum: The bearing steel with wear-resistant and uniform hardness is pressed to make the product run relatively light
7. The pulley adopts high quality nylon pulley, the weight of the whole machine is 226KG, the size is 1180*1130*2200mm
